Ports with Duplicate Numbers

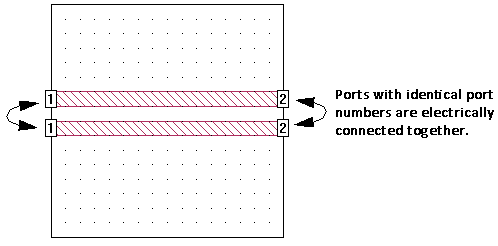

All ports with the same number, as pictured below, are electrically connected together. As many physical ports as desired may be given the same numeric label. Such ports are common mode ports (sometimes referred to as “even-mode” or “push-push” ports) and have many uses, including simulating the common-mode response of a circuit.
