Brick - Draw Brick Rectangle

Selecting Insert - Brick - Draw Brick Rectangle allows you to create a brick rectangular polygon. Once the rectangle is added to the circuit, it is subsequently treated like any other polygon with no restrictions.

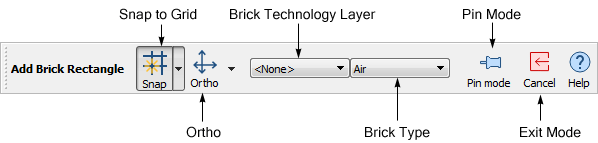

1. After selecting the Draw Brick Rectangle command, the Add Brick Rectangle tool bar appears in the project editor tab.


2. If you wish to assign the rectangle to a Technology Layer, you may select it from the Technology Layer drop list in the tool bar. If no Technology Layer is assigned, you may select a brick type from the drop list.
3. Once your selections, if any, are made, place the cursor where you want one corner of the rectangle to be.
4. Drag the cursor to form an outline of the desired rectangle.
5. When the rectangle is the size and dimensions you want, release the mouse button to draw the rectangle in your circuit.

If you wish to add more than one rectangle at a time, press the shift key while making the menu selection or click on the Pin mode button  in the Add Brick Rectangle tool bar. This will leave you in Add Brick Rectangle until you explicitly exit this mode by selecting another command or clicking on the Exit Mode button  in the Add Brick Rectangle tool bar .

You may enter the location of the points used to create a rectangle using the keyboard, see Keyboard Entry of Points and Polygons for details.

Toolbar button:
