Gerber Importer Window

Parent Previous Next

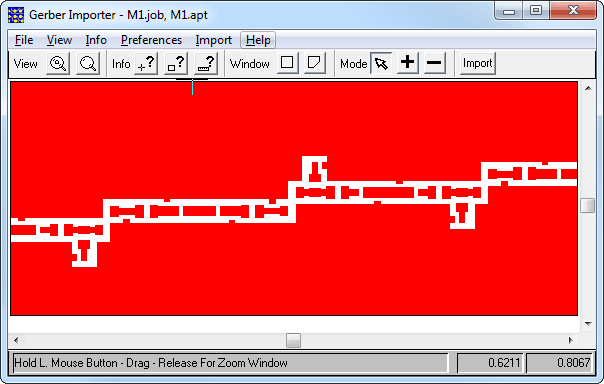

The Gerber Importer window, shown below, allows you to select a portion of the layout to import. It is opened by clicking on the window button on the Netex-G window and clicking on the Launch Gerber Viewer button.


For more information on the Gerber Importer window, select Help - Contents from the main menu in the window.

Viewing Layers in the Gerber Importer

When using the Gerber Importer window, you may wish to view a particular metal layer. In order to do so, do the following:

  1. Select File - Layer from the Gerber Importer main menu.

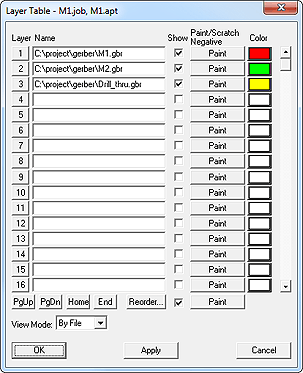

    The File Layer Table appears on your display.

  2. Clear the Show checkbox of any layer obscuring the view of the layer you wish to see.
  3. Click on the OK button to apply the changes and close the Layer Table.

    The view in the Gerber window is updated.
