Inductor Model File Details window

Inductor Model File dialog box

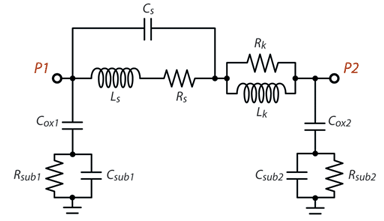

This window is opened when you click on the Details button in the Schematic window after an inductor model has been extracted. This window displays the calculated model parameters. An example of a Untapped topology is shown below with a diagram of the topology to identify the parameters.

Copy: Clicking on this button copies the contents of the display window to your clipboard. This may be used to copy your model parameters to another application. (Available only on Windows platforms)
