Selecting Insert - Via - Draw Via Polygon allows you to create a via polygon.

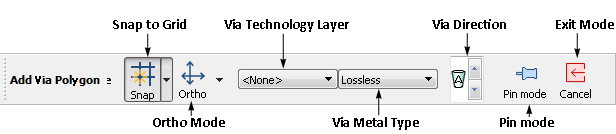

- After selecting the Draw Via Polygon command, the Add Via Polygon tool bar appears in the project editor tab.
- If you wish to assign the rectangle to a Technology Layer, you may select it from the ViaTechnology Layer drop list in the tool bar. If no Technology Layer is assigned, you may select a via metal from the drop list. You may also select a direction for the via: up one level , down one level or down to ground .
- Once your selections, if any, are made, click where you want the first point of the polygon to appear.
- As you move the cursor, a moving rubber band appears stretching from the first point to the cursor location. Click on the next point of the polygon and a fixed line appears between the first two points and the rubber band extends from the last entered point.
- Continue in this manner until all the points of the polygon have been added.
- To complete the polygon, click again on the first point entered or double-click when entering the last point.
If you wish to add more than one via polygon at a time, press the shift key while making the menu selection or click on the Pin mode button in the Add Via Polygon tool bar. This will leave you in Add Via Polygon until you explicitly exit this mode by selecting another command or clicking on the Exit Mode button in the Add Via Polygon tool bar .
You may enter the location of the points used to create a rectangle using the keyboard, see Keyboard Entry of Points and Polygons for details.
Tool Bar Button:
