During the setup of the analysis, we specified that current density data should be calculated. The current density viewer can be used to view this data.

    1.  Select Results - View Currents from the main menu of the Sonnet Cadence Virtuoso Interface window.

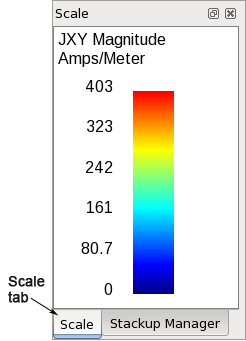

Sonnet’s session window appears on your display, then a current density viewer tab is opened  showing metal level 3. Note that there may be a slight delay until the current density viewer tab is opened. Depending on your previous settings, the scale may not be displayed or may be too small. . If so, click on the Scale tab, and resize the scale panel. For more information on reconfiguring the Sonnet session window, see Reconfiguring Sonnet Windows.

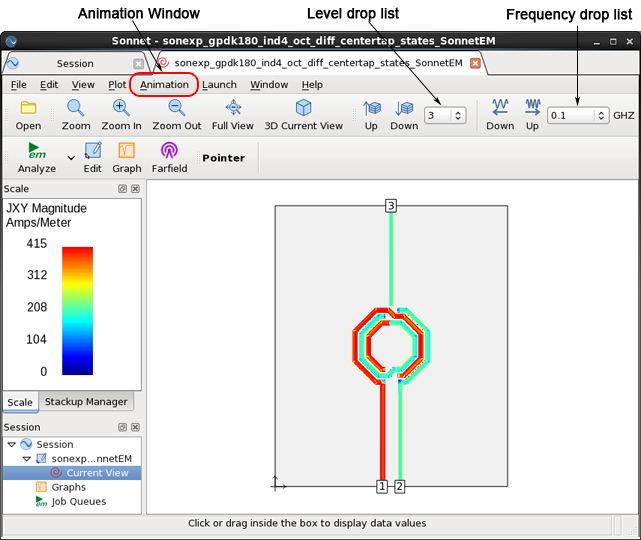

The current density viewer allows you to view the current density data at any frequency that was used in calculating the solution by selecting the frequency from the Frequency drop list on the Levels tool bar. You may also animate your results as a function of frequency or time. For more information on using the current density viewer, please see Current Density Tab - Current Density Viewer.

    1.  When you are done examining your current density data, select File ⇒ Exit from the main menu of the current density tab.

The Sonnet session window is closed.
