Selecting an ADS Layer to Map to Sonnet

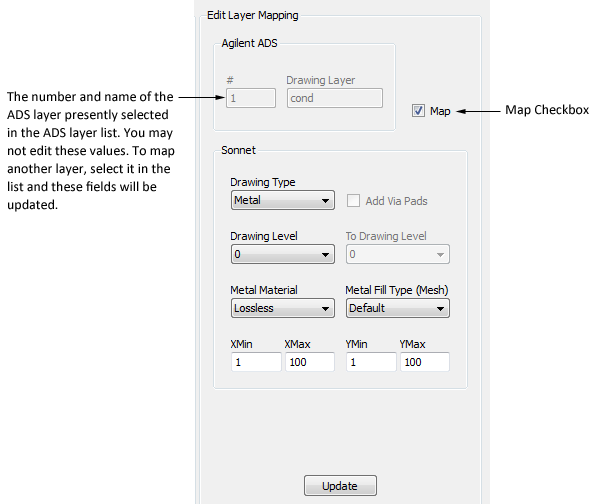

If you wish to map an ADS layer to Sonnet, click on the desired ADS layer in the list. The number and name of the layer will appear in the Edit Layer Mapping section of the Substrate Setup File window as shown below. Click on the map checkbox to map the displayed ADS layer to Sonnet. For details on the settings, see Sonnet Settings.
