Common Mode Configuration

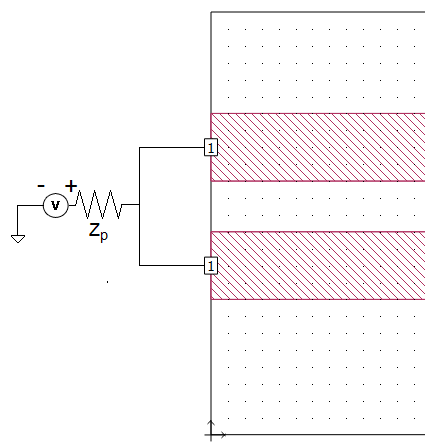

To model common mode in Sonnet, two ports using the same port number should be used, as shown below. All ports with the same number are electrically connected together. As many physical ports as desired may be given the same numeric label. Zp is the impedance of the port.
