Adding the Sonnet Design Kit to an Existing Workspace

To add the Sonnet Design Kit to an existing workspace, do the following:

1.    Select the workspace in the ADS main window.
2.    Select Design Kits ⇒ Manage Favorite Design Kits from the menu of the main window.

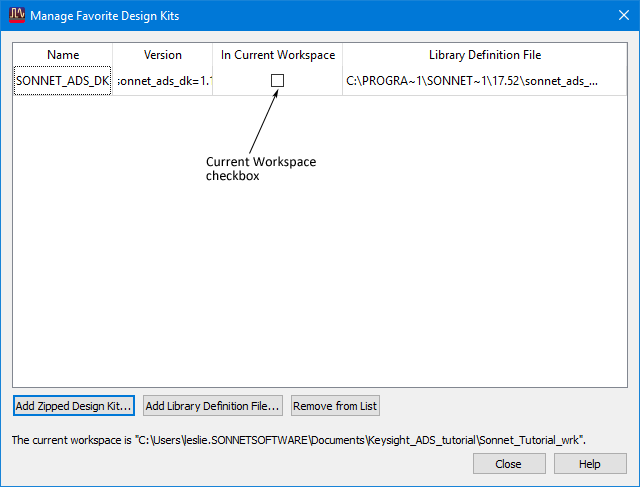

   The Manage Favorite Design Kits dialog box appears on your display as shown below. Note that if you have multiple design kits installed, they will also be listed in this dialog box; our example shows only the Sonnet design kit.


3.    Click on the Current Workspace checkbox in the SONNET_ADS_DK entry line to select the Sonnet design kit.

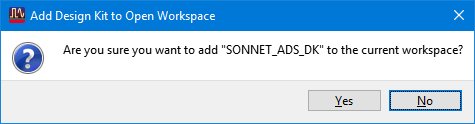

   A query window appears on your display.


4.    Click on the “Yes” button in the query window.

   The window closes and this completes adding the design kit.
5.    Click on the “Close” button in the Manage Favorite Design Kits dialog box to close it.
