Accessing Sonnet’s Keysight ADS Interface

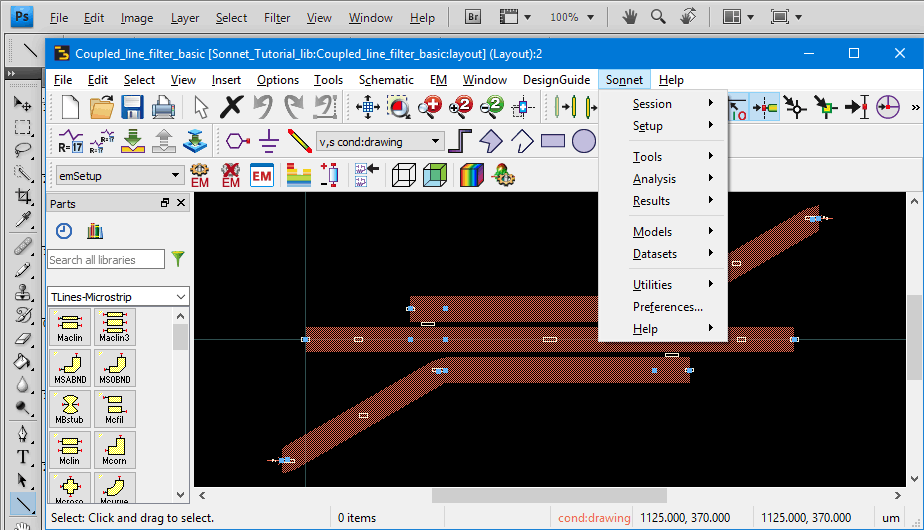

In order to use Sonnet as your electromagnetic analysis engine, you must create a layout view of the design or a part of a design that you wish to simulate in Sonnet. Once you open the layout view, you may use the Sonnet menu in the layout view window to set up and simulate the circuit in Sonnet. The layout window with the Sonnet menu open is shown below.
