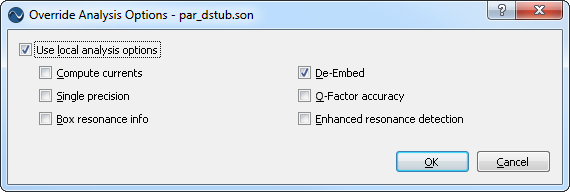

Override Analysis Options dialog box

The Override Analysis Options dialog box is opened when you click on the Analysis Options icon  in a Sweep Set in the Sweeps page. This dialog box allows you to set up local analysis options for the Sweep Set. Any global options are overridden by these settings.

Use local analysis options checkbox: Select this checkbox if you wish to define local analysis options for the Sweep Set. When this checkbox is selected, the options below are enabled. Click on an option's checkbox to select it. For definitions of the options, please see EM Options page.

If you wish to use the global options for this sweep set, clear the this checkbox.
