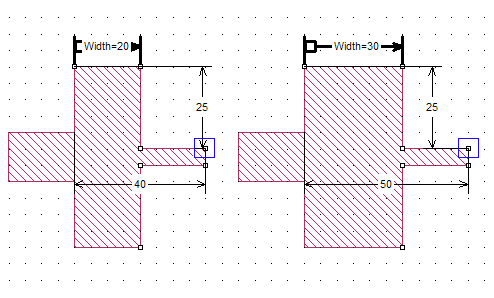

This setting moves the adjustable point set the same distance as the reference point is moved and all the points in the adjustable point set maintain their relative position. This is the default setting. An example using an anchored dimension parameter is shown below. Note that the adjustable point sets are highlighted.
The anchored dimension parameter is increased by 10 mils, so each point in the adjustable point set is moved away from the anchor point by 10 mils. As shown in the illustration, the original distance from the anchor to the highlighted point was 40 mils; when the value of the parameter is increased, the point was moved by 10 mils so that it is now 50 mils away from the anchor point.
