Viewing the Stackup

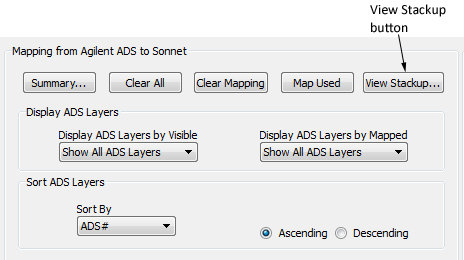

You may open Sonnet’s Stackup Viewer, which allows you to view your stackup, including materials, dielectric layers, and technology layers (if present) which show the mapping of drawing layers to metal levels in the translated Sonnet project by clicking on the View Stackup button in the Substrate File Setup dialog box.

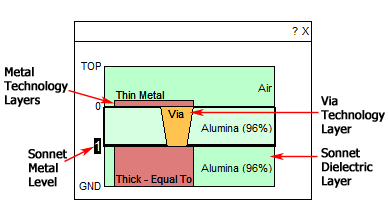

For more information on the Stackup Viewer, please click on the ? in the Stackup Viewer window. An example is shown below:
