Adding the Sonnet Design Kit When Creating a Workspace

To add the Sonnet Design Kit to a workspace when you create the workspace, do the following:

1.    In the main ADS window, select File ⇒ New ⇒ Workspace from the menu.

   The New Workspace Wizard appears on your display. If it opens on the Introduction page, please click on the “Next” button.

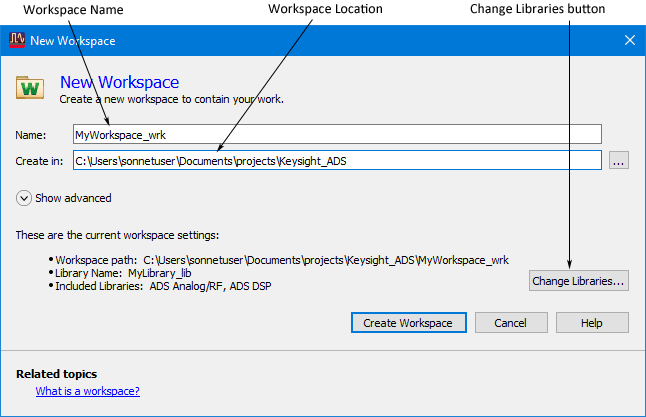

2.    In the Workspace Name page of the Wizard, enter the desired workspace name and location.


3.    Once you have finished specifying these fields, click on the "Change Libraries" button.

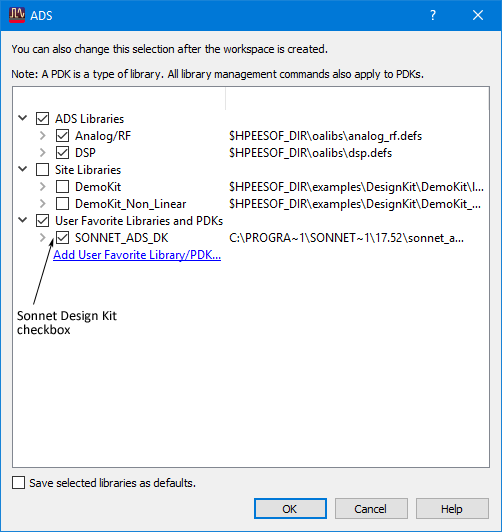

   The Add Libraries page appears on your display.
4.    Click on the SONNET_ADS_DK checkbox on the Add Libraries page.

   Selecting the SONNET_ADS_DK checkbox automatically selects the “User Favorite Libraries and PDKs” checkbox. Selecting this checkbox installs the Sonnet Keysight ADS Interface in this workspace.


5.    Click on the “Ok” button.

   The Add Libraries dialog box is closed. Note that the Included Libraries entry in the New Workspace dialog box has been updated to display "SONNET_ADS_DK."
6.    Click on the Create Workspace button.

   This closes the New Workspace dialog box and creates the new workspace with the Sonnet Interface installed.
