Physical Size

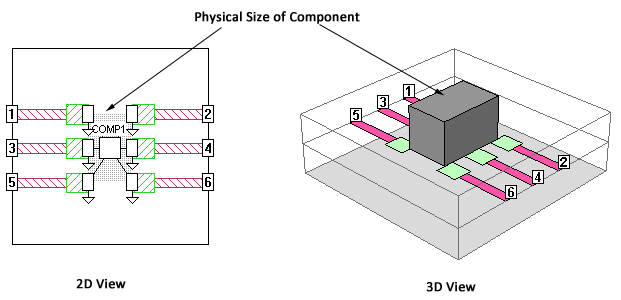

You may enter a physical size for your Component for display purposes. The physical dimensions length, width, and height, are not used in the simulation but do affect how your Component is displayed in the project editor. You may enter the precise dimensions or choose Auto to have the software choose approximate dimensions based on your Component’s port placements. An example is shown below.
