A Simple Microwave Example

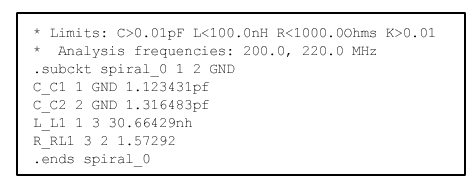

Shown below is a simple step discontinuity followed by the Pi model produced when you set up an optional Pi Model Spice output file.

There are two capacitors to ground (node GND), one inductor connected between node 1 and node 3, and one resistor connected between node 3 and node 2 in the lumped element model.
