Highlight Non-hierarchical Items in Layout

Keysight ADS Interface ›› Keysight ADS Interface ›› Defining the Substrate ›› Mapping from ADS to Sonnet ››

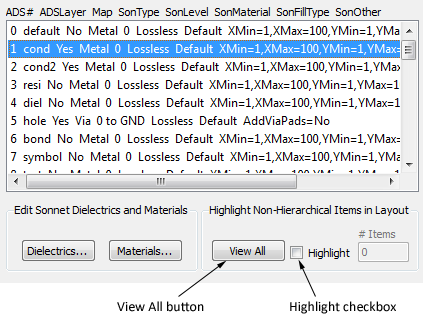

Select the Highlight checkbox in this section of the dialog box so that the items on the presently selected ADS layer are selected in the layout window. The number of objects that are presently highlighted in the view is displayed to the right of the checkbox. If you wish to see a full view of the layout window, click on the View All button.
