Functions and Operators

Parent Previous Next

Functions and operators should always use lower case characters. Use parentheses in your equation to delineate the order in which the operations should be performed. For example

((x * y)^2)

would multiply the complex number x by the complex number y and square the resulting complex number.

Operators

Entry

Definition

x + y

Complex addition of x and y

x - y

Complex subtraction of y from x

x*y

Complex multiplication of x and y

x/y

Complex division of of x by y

x^y

Power x^y = x raised to the power of y

Logarithmic Functions

Entry

Definition

db10(x)

dB of a Power value (i.e. S21^2) = 10Log10(|x|)

db20(x)

dB of a voltage value (i.e. S21) = 20Log10(|x|)

log10(x)

The base 10 logarithm of the magnitude of x

ln(x)

The natural logarithm of the magnitude of x

exp(x)

Natural antilogarithm of x

Complex Math Functions

Entry

Definition

real(x)

Real part of complex value x

imag(x)

Imaginary part of complex value x

mag(x)

Magnitude of complex value x

deg(x)

Phase of complex value x in degrees

rad(x)

Phase of complex value x in radians

cmplx(x,y)

Complex: form a complex number from two values CMPLX(x,y) = ( x+iy)

Note that this is the only way you can form a complex number.

hypot(x,y)

Euclidean distance between x and y

conj(x)

Conjugate of a complex number

(( x+iy) -> ( x+iY))

Trigonometric Functions

Entry

Definition

sin(x)

Sine of complex value x in radians

cos(x)

Cosine of complex value x in radians

tan(x)

Tangent of x with x in radians

asin(x)

Inverse sine of x with result in radians

acos(x)

Inverse cosine of x with result in radians

atan(x)

Inverse tangent of x with result in radians

atan2(y,x)

Inverse tangent of y/x with result in correct quadrant

sinh(x)

Hyperbolic sine of x with x in radians

cosh(x)

Hyperbolic cosine of x with x in radians

tanh(x)

Hyperbolic tangent of x with x in radians

asinh(x)

Inverse hyperbolic sine of x with result in radians

acosh(x)

Inverse hyperbolic cosine of x with result in radians

atanh(x)

Inverse hyperbolic tangent of x with result in radians

General Mathematical Functions

Entry

Definition

fmod(x,y)

Floating point remainder of x divided by y

int(x)

Truncated integral value of x

max(x,y)

Maximum of x and y

min(x,y)

Minimum of x and y

sqrt(x)

Square root of x

Conversion Functions

Entry

Definition

m2p(x)

Converts x meters to the present project units. For example, if project units are set to mils, it converts x meters to the equivalent number of mils

h2p(x)

Converts x Hz to the present project units. For example, if project units are set to GHz, it converts x Hz to the equivalent number of GHz

p2m(x)

Converts x project units to meters. For example, if project units are set to mils, it converts x mils to the equivalent number of  meters

p2h(x)

Converts x project units to Hz. For example, if project units are GHz, it converts x GHz to the equivalent number of Hz

Table Functions

There are two additional functions that may be used in the project editor.

table1(" filename.csv", <key>)    This function allows you to access values in a . csv file; saving a file from Microsoft Excel for example. Note that a comma must separate the two values. Note that the quote marks are required as part of the syntax.

" filename.csv" is the path of the . csv file you wish to access. If only the file name is specified (with no path), then the file should be in the same directory as the source project. You may use relative paths. <key> is the value from the first column of the desired entry in the . csv file. The function returns the second value. If the <key> value does not occur in the file, then linear interpolation of the file is used to return a value. Note that you may not extrapolate; the <key> value must fall between two existing values in the table. The key value does not have to be a fixed number; you may use the constant FREQ as the key or a variable. For example, you could define a variable as table1("example.csv", FREQ) which would define a variable which changes with the frequency according to the numbers in the table example.csv. Please note that the frequency units are in Hz. Comments should be preceded by an exclamation point (!). The exclamation point may be the first character in an entry or occur later in a line entry.

For example, you have the . csv file " example.csv" which contains the following entries :

! Project galaxy data

1,45
3,135
7,315 !My comment
8,360

then,

table1(" example.csv", 3) = 135
table1(" example.csv", 4) = 180
table1(" example.csv", 8) = 360

table2("filename.csv", <rowkey>, <colkey>) This function allows you to access values in a .csv file; saving a file from Microsoft Excel for example. Note that commas must separate the three values. While the table1 function allows you to have only one value per key, the table2 function allows you to define a row of multiple values, and use the two keys to identify a specific value in the row.

"filename.csv" is the path of the .csv file you wish to access. If only the file name is specified (with no path), then the file should be in the same directory as the source project. You may use relative paths.  <rowkey> is the row number from which you wish to obtain a value and <colkey> identifies the column from which you wish to obtain the value. The function returns the value from that column in that row of the source file. If the <rowkey> or <colkey> does not occur in the file, then interpolation of the file is used to return a value. The key values do not have to be fixed numbers; you may use the constant FREQ or a variable as key values. Comments should be preceded by an exclamation point (!). The exclamation point may be the first character in an entry or occur later in a line entry.

For example, you have the .csv file "table2d.csv" which contains the following entries:

! Project galaxy data

 ,  1, 2, 3, 4, 5,  6

 2, 2, 4, 6, 9, 10, 12

 4, 4, 8,12,16, 20, 24

 6, 6,12,18,24, 30, 36

 8, 8,16,24,32, 40, 48

10,10,20,30,40, 50, 60

12,12,24,36,48, 60, 72 !My comment

14,14,28,42,56, 70, 84

16,16,32,48,64, 80, 96

18,18,36,54,72, 90,108

20,20,40,60,80,100,120

22,22,44,66,88,110,132

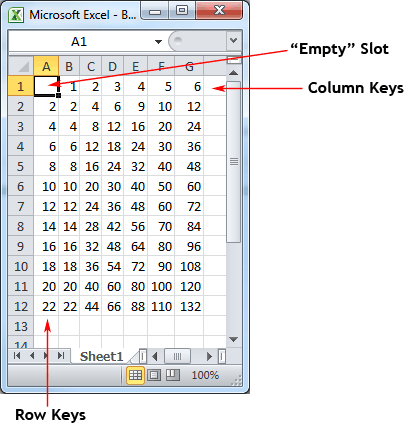

Line 1 is the list of column keys. All other lines are <rowkey> followed by the values in each column. Note that there is no value in the first position in the first line. This is an "empty" slot as it is the intersection of the row and column keys. The .csv file is displayed below in Excel to more clearly illustrate the format.

Then,

table2("table2d.csv", 2,4) = 9
table2("table2d.csv", 8,1) = 8
table2("table2d.csv", 16,3) = 48
table2("table2d.csv", 15.2,3.5) = 53.2

Note the comma at the beginning of the first line. It is not required by Sonnet, but if that comma is not present Excel will not parse the file. On the other hand Excel allows a dummy value before that first comma which is not accepted by Sonnet. Extra spaces are permitted.
