Graph - Manage Curves

Selecting Graph - Manage Curves from the Graph tab main menu opens the Manage Curves dialog box. This dialog box allows you to manage the curves in your plot. You may add, modify, delete, group and ungroup plots, and control how they are displayed and on which axis. You define the data that is plotted in a curve by selecting a measurement type.

There are three sections in the Manage Curves dialog box: Curves, Measurement, and Properties. The dialog box is designed so that you start on the left and move to the right. You select or add a curve in the leftward panel, then select the desired measurement for that curve in the middle panel, then input the measurement's properties in the rightward panel.

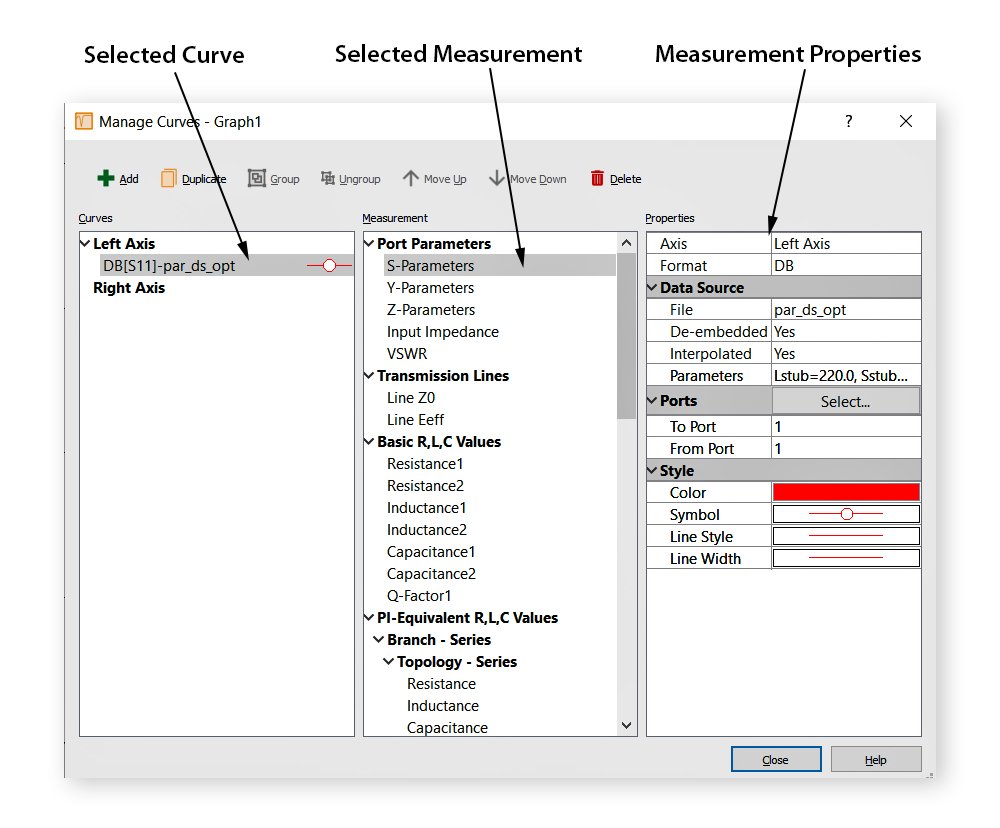

Selections made in the Measurement and Properties sections affect the presently selected curve(s). Shown below is a sample of the dialog box for a Cartesian graph when S-parameters are selected. Changing the Measurement or using a Smith Chart will change the appearance of this dialog box.

You can learn more about each of these sections:

Curves Section: This section lists the presently defined curves. See Curves Section for more information.

Measurement Section: This section defines the types of data used in the presently selected curve in the Curves section.See the Measurement Section for more information.

Properties: The appearance of the Properties section is updated depending on the selection in the Measurement section. Therefore, to learn more about Properties section, see the Measurement Section and click on the specific section in which you are interested.
